Engines are the heart of any vehicle, converting fuel into mechanical motion and powering everything from motorcycles to heavy machinery. Understanding the intricate components that make up an engine is essential for anyone involved in automotive engineering, maintenance, or enthusiast-level mechanics. This comprehensive overview delves into the 30 critical parts of an engine, shedding light on their functions, interrelationships, and importance in the overall operation of the vehicle.
Whether you're a seasoned mechanic or a curious learner, exploring these Engine Parts will enhance your appreciation for the complex engineering that powers modern transportation.
The engine block is the foundational structure of an engine, typically made from cast iron or aluminum alloy. It houses the cylinders and forms the framework to which other engine parts attach. The block must withstand extreme pressures and temperatures, requiring precision engineering and high-quality materials. Advances in metallurgy have allowed for lighter blocks without compromising strength, contributing to improved fuel efficiency and performance.

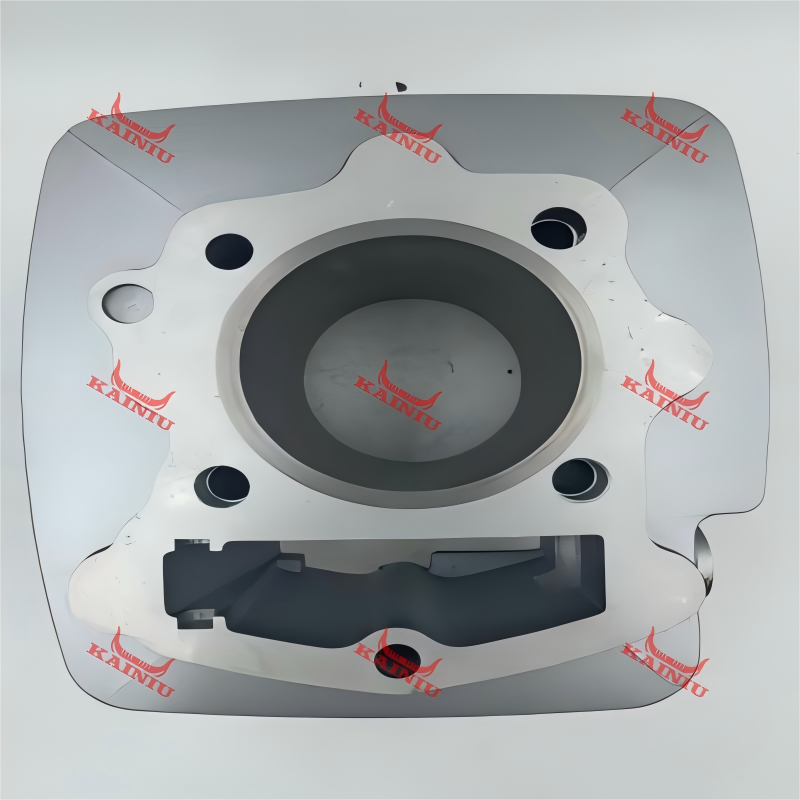

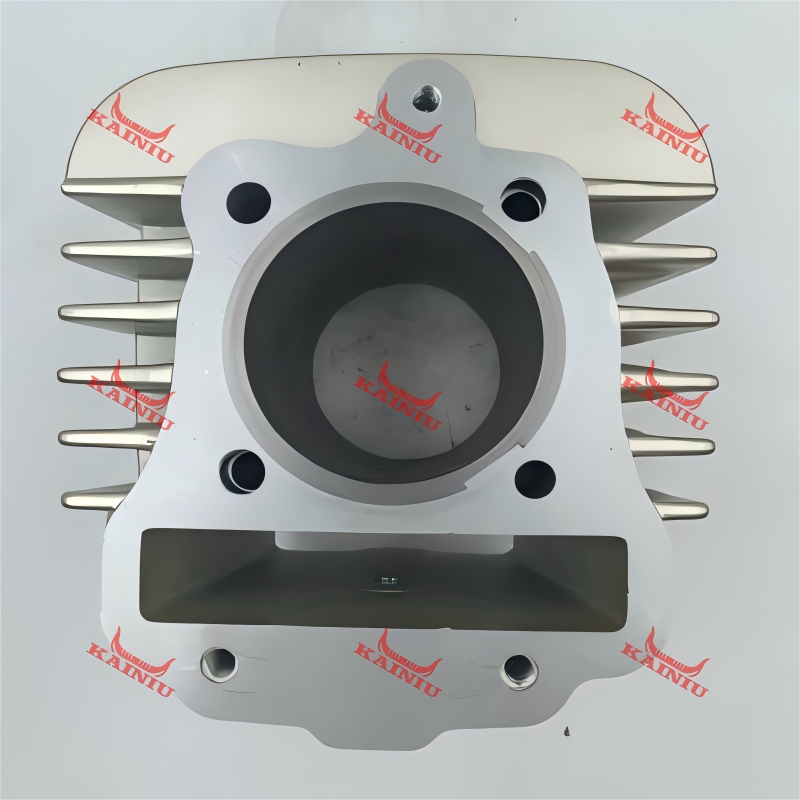

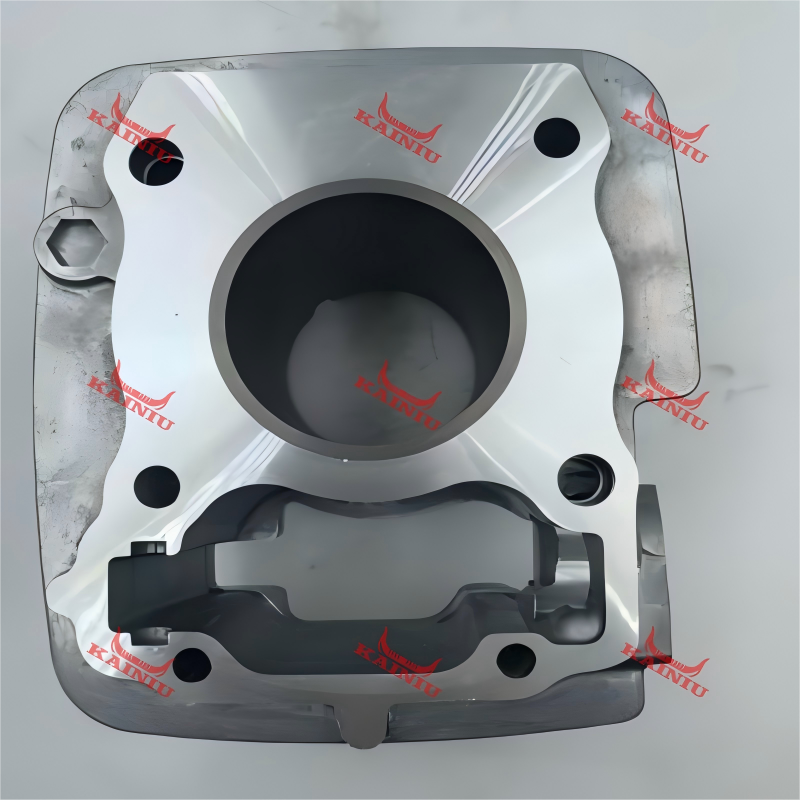

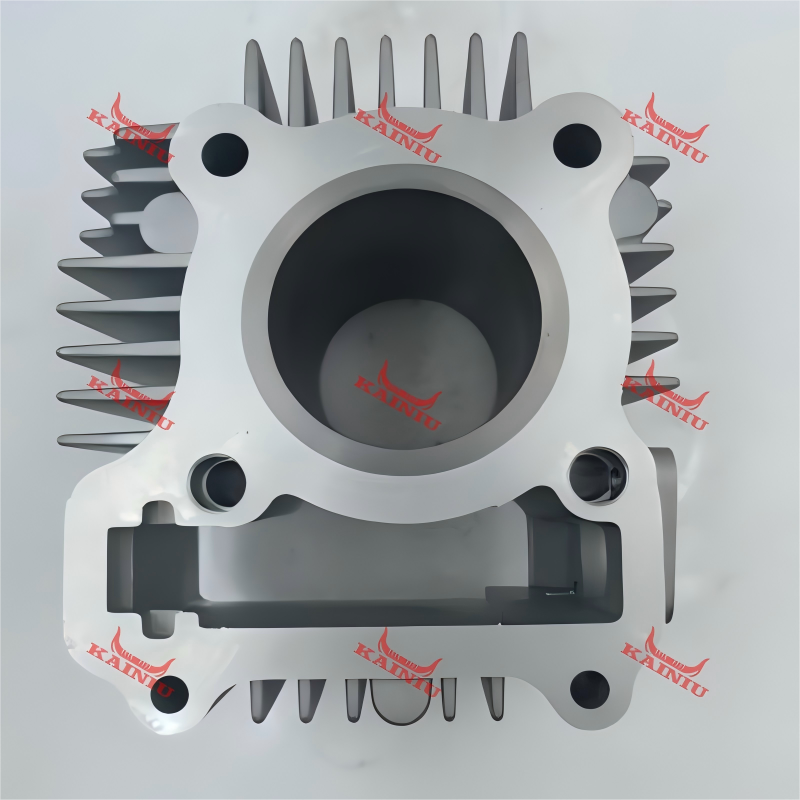

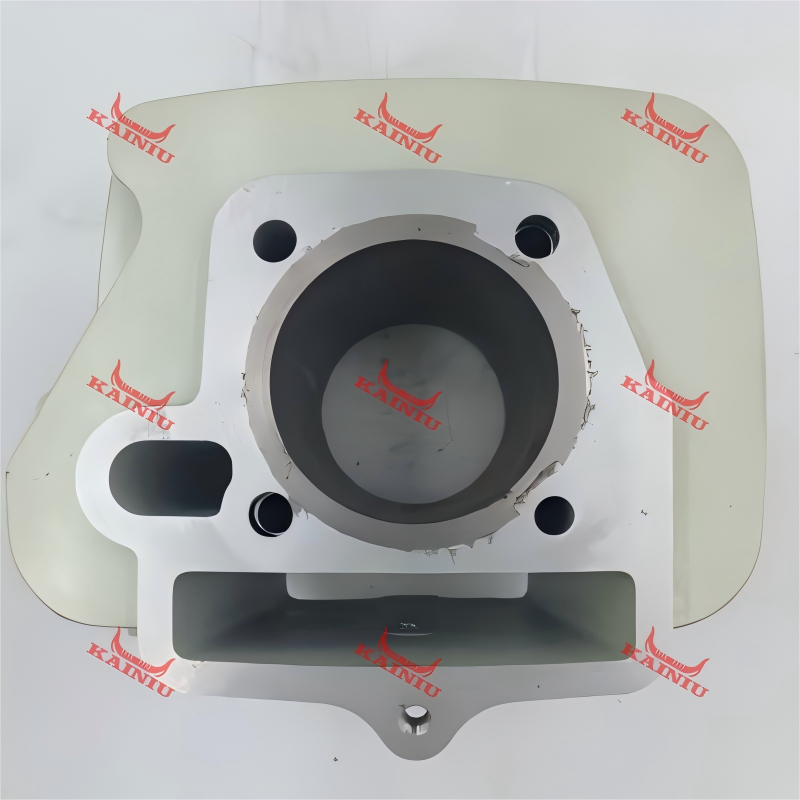

Cylinders are the chambers where fuel combustion occurs. The number of cylinders can vary, affecting the engine's power and smoothness. Each cylinder contains a piston that moves up and down, converting the energy from combustion into mechanical motion. The design and arrangement of cylinders—such as inline, V-type, or flat—play a significant role in the engine's characteristics.

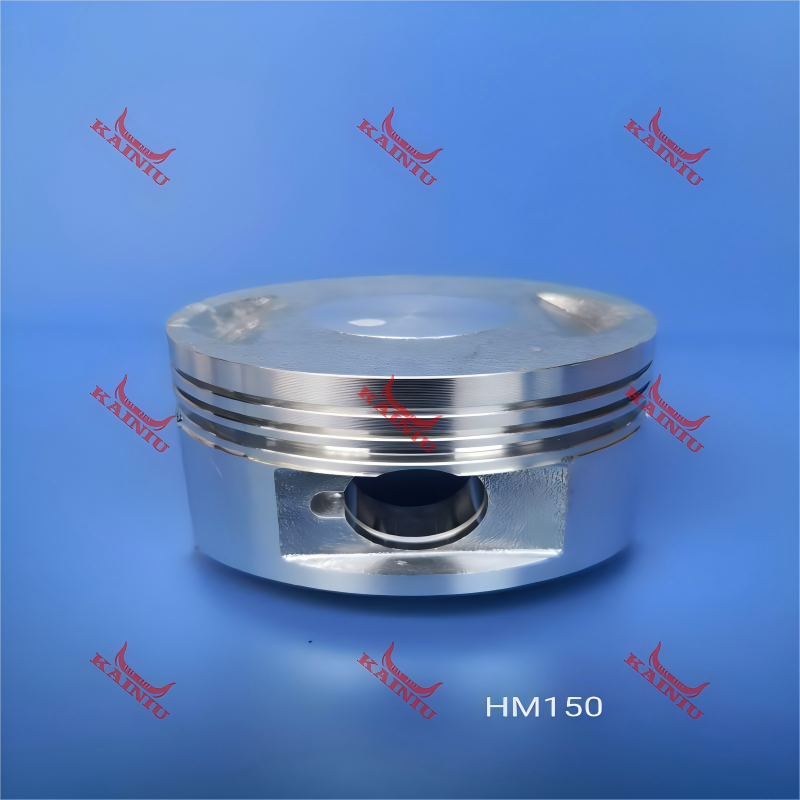

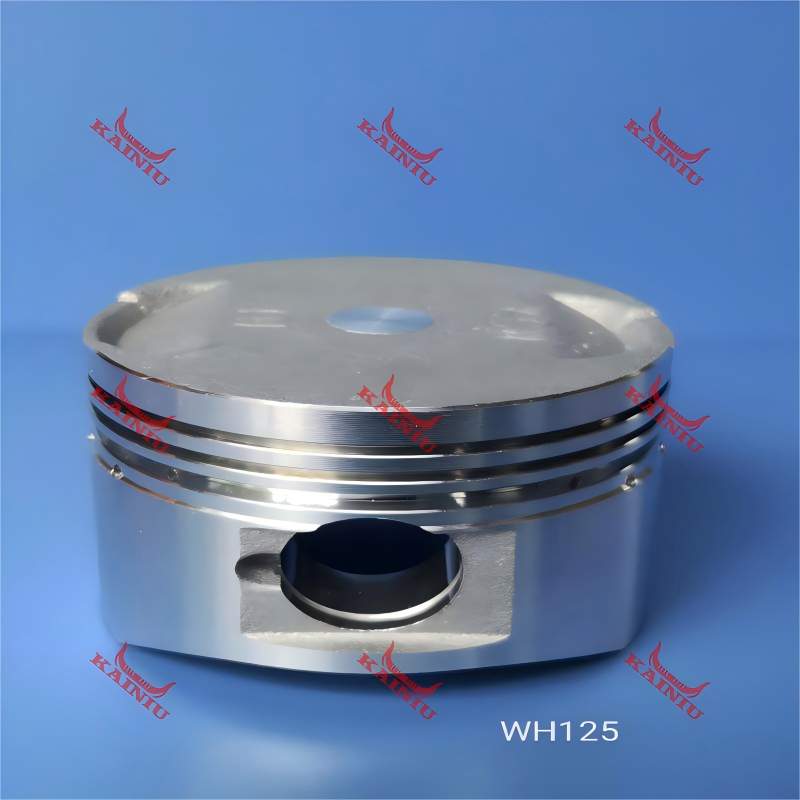

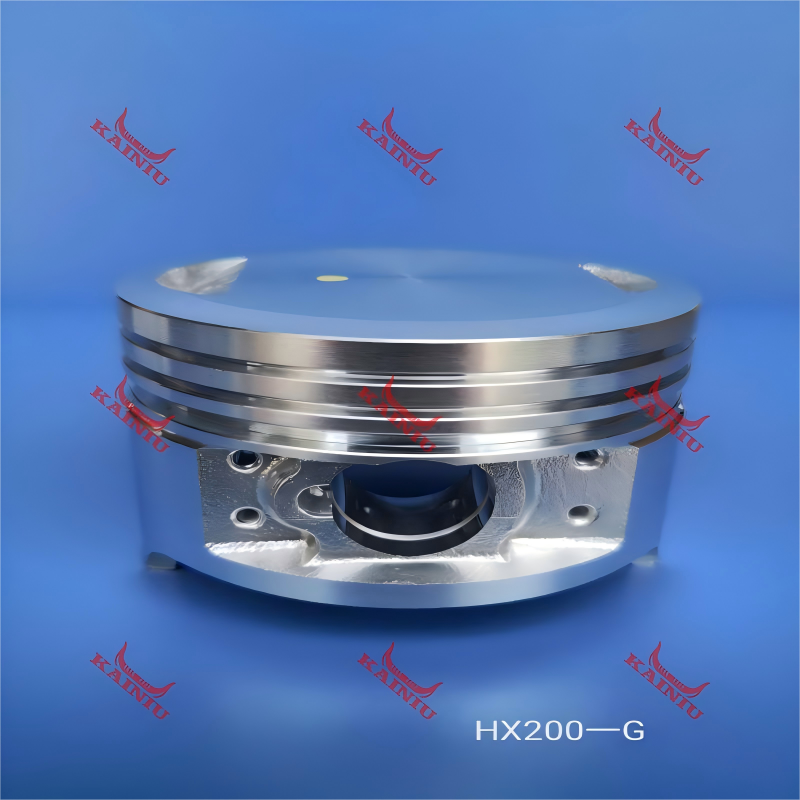

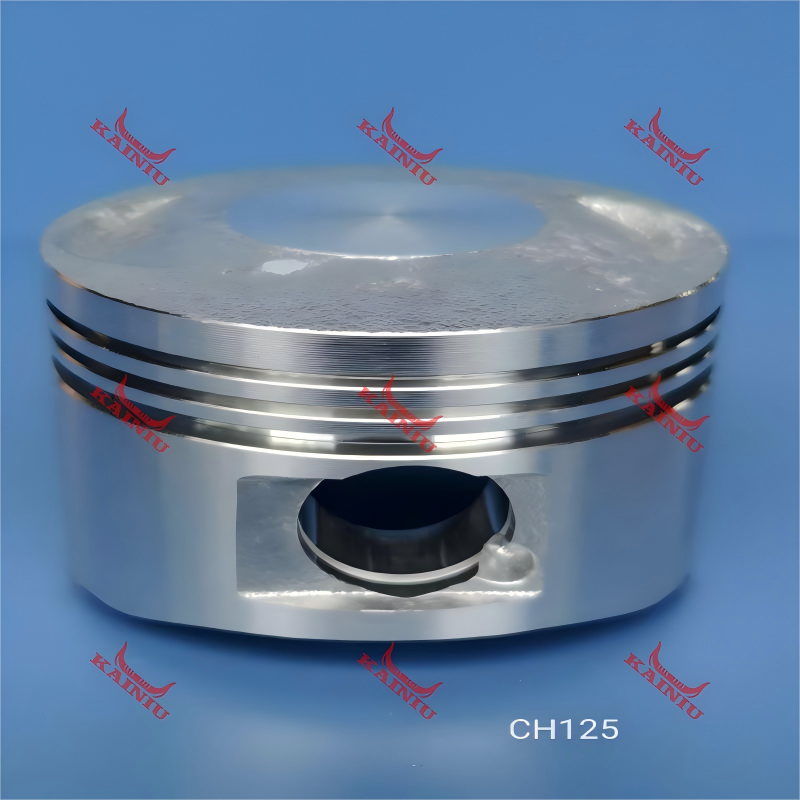

Pistons are cylindrical components that move within the cylinders, driven by expanding gases during combustion. Made from lightweight, heat-resistant alloys, pistons transfer force to the crankshaft via connecting rods. Modern pistons often feature intricate designs like recesses and coatings to enhance efficiency and reduce emissions.
The crankshaft converts the linear motion of the pistons into rotational motion that ultimately turns the wheels. Precision-balanced and crafted from high-strength steel, the crankshaft must endure immense forces. Innovations in crankshaft design, such as cross-plane or flat-plane configurations, influence engine balance and sound characteristics.
The camshaft controls the opening and closing of the engine's valves. By rotating in sync with the crankshaft, it ensures proper timing for air intake and exhaust. Camshaft profiles, or "cams," affect engine performance characteristics like torque and horsepower. Variable valve timing technologies have evolved to optimize efficiency across different engine speeds.
Valves regulate the flow of air and fuel into the cylinders and allow exhaust gases to exit. Typically made from heat-resistant alloys, intake and exhaust valves operate at precise intervals. Innovations like multi-valve configurations per cylinder improve airflow and combustion efficiency.
In gasoline engines, spark plugs ignite the air-fuel mixture within the cylinders. They must deliver a consistent spark under extreme conditions. Advances in spark plug technology, such as iridium or platinum tips, enhance durability and performance. Proper maintenance of spark plugs is crucial for optimal engine efficiency and emission control.
Connecting rods link the pistons to the crankshaft, transferring motion and force. These rods must be lightweight yet strong enough to withstand high stress. Material selection and design optimizations reduce reciprocating mass, enhancing engine response and reducing vibrations.
Fuel injectors deliver precise amounts of fuel into the combustion chamber. Controlled by the engine's computer system, they play a vital role in fuel efficiency and emission reduction. Modern engines utilize direct injection systems that improve power output and lower fuel consumption.
Although largely replaced by fuel injection systems in modern engines, carburetors mix air and fuel for combustion in older vehicles. Understanding carburetors is essential for classic car enthusiasts and mechanics working with legacy systems. Their design impacts engine performance and requires careful tuning.
The timing belt or chain synchronizes the rotation of the crankshaft and camshaft, ensuring valves open and close at the correct times during each cylinder's intake and exhaust strokes. Regular maintenance is critical, as failure can lead to significant engine damage.
The oil pan, located at the bottom of the engine block, stores the engine oil used for lubrication. It includes a drain plug for oil changes and may contain baffling to prevent oil starvation during acceleration and cornering. Material choices affect weight and heat dissipation.
The oil pump circulates oil under pressure to the engine's moving parts. Adequate lubrication reduces friction and wear, ensuring longevity and efficiency. High-performance engines may utilize dry-sump oil systems for improved lubrication under extreme conditions.
The intake manifold distributes the air-fuel mixture to the cylinders. Its design influences airflow efficiency and engine performance. Variable intake manifolds can adjust airflow dynamics to optimize power and torque across different engine speeds.
Connected to the engine's cylinders, the exhaust manifold collects exhaust gases and directs them to the exhaust system. Material selection and design affect heat management and emission efficiency. Performance exhaust manifolds can enhance engine power by reducing back pressure.
The cylinder head sits atop the engine block, sealing the combustion chambers. It houses the valves, spark plugs, and often the camshaft(s). Advanced designs incorporate features like variable valve timing and direct injection systems, contributing to improved efficiency and reduced emissions.
Gaskets and seals prevent leaks of fluids and gases, maintaining pressure and ensuring efficient operation. The head gasket, for example, seals the cylinder head to the engine block. Material advancements have led to more durable and heat-resistant gaskets, crucial for modern high-performance engines.
The cooling system prevents the engine from overheating. It circulates coolant through passages in the engine block and head, absorbing heat and dissipating it via the radiator. Efficient cooling is vital for engine longevity and performance, with technologies like electric water pumps and advanced thermostats enhancing control.
Forced induction components like turbochargers and superchargers increase engine power by compressing incoming air, allowing more fuel to combust. Turbochargers utilize exhaust gases, while superchargers are mechanically driven. These components have become prevalent in modern engines to boost efficiency without increasing engine size.
The Exhaust Gas Recirculation (EGR) valve recirculates a portion of the exhaust gases back into the cylinders, reducing nitrogen oxide emissions. It plays a vital role in meeting emission standards and requires proper maintenance to prevent clogging and performance issues.
The throttle body controls the amount of air entering the engine in response to accelerator input. It directly influences engine power output and responsiveness. Electronic throttle controls have improved efficiency and allowed for features like cruise control and engine idle management.
The flywheel stores rotational energy, smoothing out the power delivery of the engine and aiding in gear changes in manual transmissions. Its mass and design affect engine responsiveness and drivability. Lightweight flywheels can enhance acceleration but may impact idle smoothness.
The starter motor initiates engine operation by turning the crankshaft until the engine can run under its own power. Dependable starter motors are essential for reliable vehicle operation, especially under various temperature conditions.
The alternator generates electricity to power the vehicle's electrical systems and recharge the battery while the engine is running. Modern alternators are more efficient and may include features like variable voltage control to improve fuel economy.
Engine mounts secure the engine to the vehicle's frame while absorbing vibrations. They contribute to ride comfort and protect the engine and transmission from excessive movement. Advanced mounts may use hydraulic or electronic systems to adapt to driving conditions.
The Positive Crankcase Ventilation (PCV) valve reduces engine emissions by redirecting blow-by gases back into the combustion chamber. It helps prevent oil contamination and reduces environmental pollutants. Regular inspection ensures optimal engine performance and emission control.
Modern engines rely on various sensors to monitor conditions and adjust operations accordingly. Oxygen sensors help manage fuel mixtures, knock sensors detect abnormal combustion, and Mass Air Flow (MAF) sensors measure the amount of air entering the engine. These sensors are integral to the engine's control system, optimizing performance and emissions.
Beyond the exhaust manifold, the exhaust system includes components like the catalytic converter, muffler, and exhaust pipes. It directs exhaust gases away from the engine, reduces noise, and minimizes harmful emissions. High-performance exhaust systems can enhance engine efficiency and power.
The lubrication system distributes oil to moving engine parts, reducing friction and wear. Components include oil galleries, filters, and coolers. Synthetic oils and advanced filtration technologies have extended engine life and performance, even under extreme conditions.
The ECU is the brain of the engine, managing fuel injection, ignition timing, emissions control, and more based on input from various sensors. It enables precise control over engine operations, improving efficiency, performance, and compliance with emission standards. Advances in ECU technology have facilitated features like drive-by-wire and adaptive engine mapping.
Understanding the 30 essential parts of an engine provides valuable insight into the complex interplay of mechanical and electronic systems that power modern vehicles. Each component, from the robust engine block to the sophisticated ECU, plays a specific role in ensuring optimal performance, efficiency, and reliability. For those interested in exploring these components further, a deeper dive into Engine Parts can offer additional technical details and practical applications.
Advancements in engineering and technology continue to refine these parts, leading to engines that are more efficient, powerful, and environmentally friendly. Whether for professional development or personal interest, a comprehensive understanding of engine parts enhances appreciation for the innovation driving the automotive industry forward.
